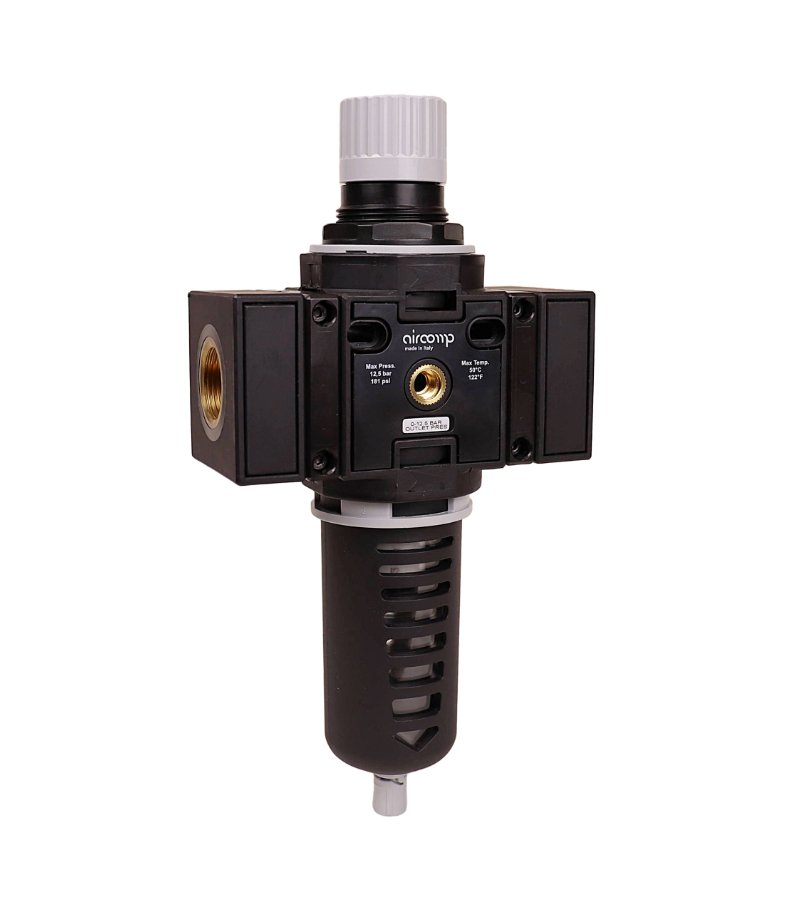

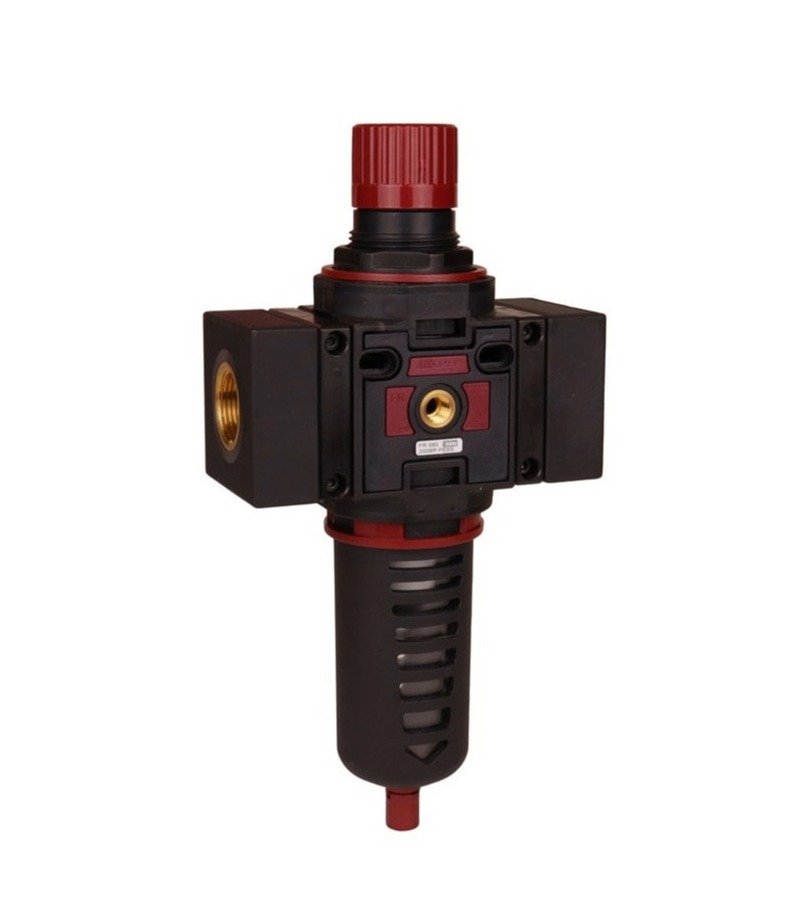

Filter Regulator – Line 080

  • High performance modular filter regulator ensuiriung big flow rate and low load loss.
  • Relieving for a quick exhaust of downstream overpressure.
  • Knob with locking pressure device.
  • Equipped with semiautomatic condensate drain as standard (SS).Available options: float type automatic drain (SA) and differential drain (SAD) that can convey condensate to to the outside even when the bowl is pressurized.
  • Bowl made from hardened polyamide with outer guard.
  • INLET-OUTLET connections 3/4”
  • Pressure range 0-4; 0-8; 0-12 Bar
  • Working pressure 0,5 – 12,5 Bar
  • Working pressure with automatic drain model SA: 1,5 – 10 Bar
  • Working pressure with automatic drain model SAD: 2 – 12 Bar
  • Filtering degree: 5 micron; 20 micron
  • Reference flow rate (P1= 6,3 bar P= 1bar) : 2.880 Nl/min
  • Working temperature (a 10 bar) -5 / +50°C
  • Max Torque IN-OUT 3/4” 80 Nm
  • Bowl capacity 100 cc
  • Weight 0,880 Kg
  • Below 3°C the air of the circuit must be free from humidity
